This step is required to configure Zebra brand scanners to ensure accurate extraction of critical item details, including lot number and expiration date, from the item barcode.
Why Configuration is Required
Barcodes may contain multiple data elements in a single scan. Without proper configuration:
- Lot numbers may not be captured correctly
- Expiration dates may be missed or misread
- Data may appear as one continuous string instead of structured fields
This setup ensures the scanner parses and outputs data in a structured and usable format.
Instruction
To configure your scanner, scan the QR code below.

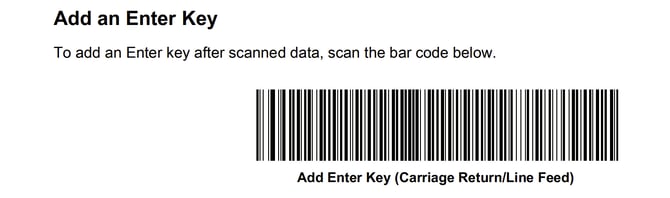

Scan the barcode below to add the enter:
Additional Configuration For Swiss-German Keyboard
This configuration is only needed when a Zebra scanner is connected to a workstation using a Swiss-German keyboard layout.
Scan the barcode below
Link to Zebra Quick Start Guide:
